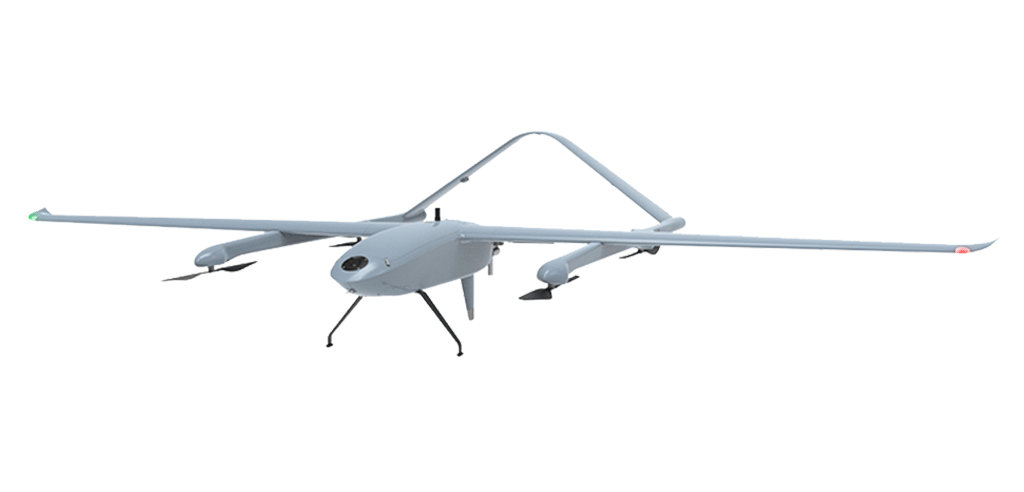

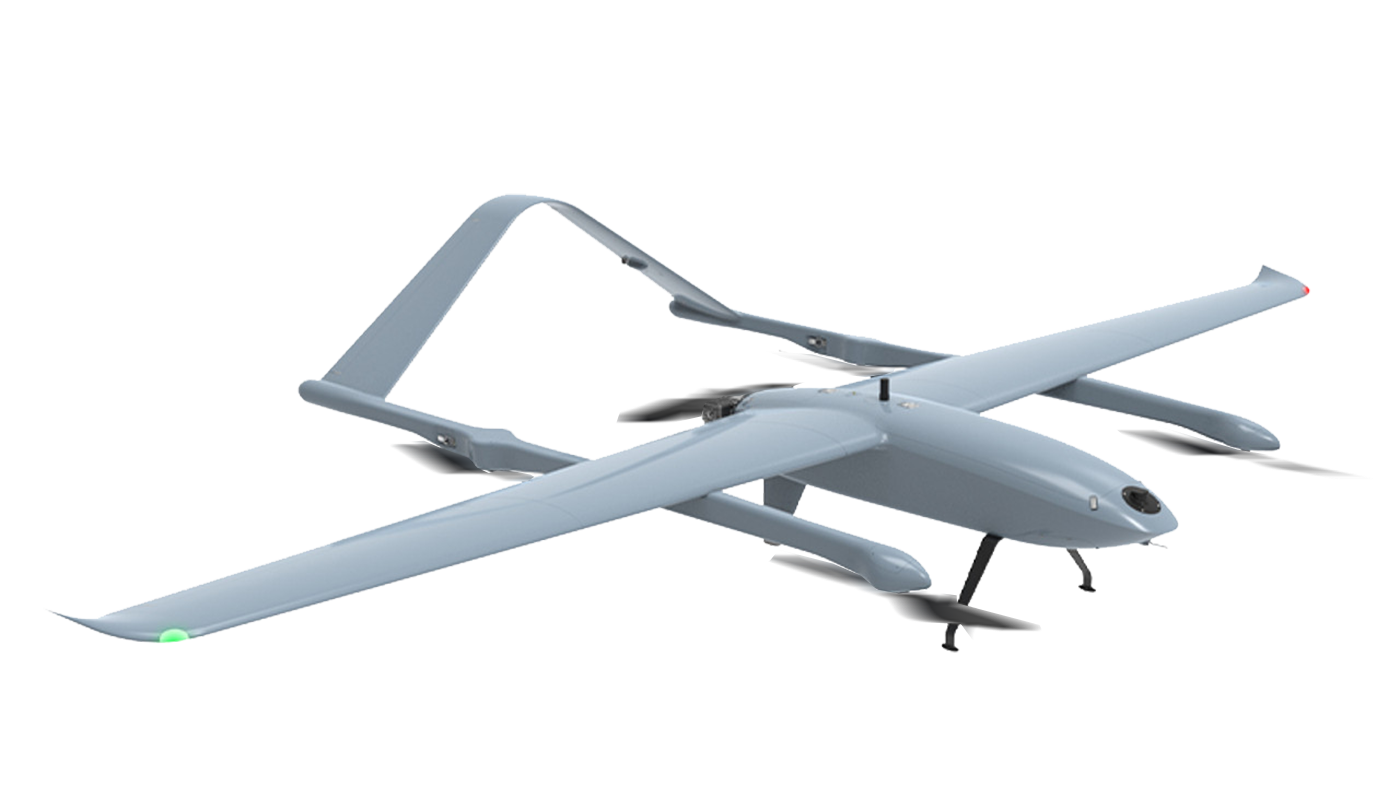

VT-3
The VT-3 is a cutting-edge vertical takeoff and landing (VTOL) system designed to deliver extended operational capabilities and superior performance in diverse environments. With an endurance of over 10 hours, it excels in long-duration missions requiring reliable aerial support. Its advanced propulsion system and aerodynamic efficiency ensure optimal performance, making it a valuable asset for both civilian and defense applications.
VT-3
Versatile
Built for versatility, the VT-3 features a robust design with a maximum takeoff weight (MTOW) of 55 kilograms and a payload capacity of up to 15 kilograms. This enables it to carry mission-specific equipment such as high-resolution cameras, LiDAR sensors, and communication relays. Whether for intelligence gathering, infrastructure inspection, or environmental monitoring, the VT-3 delivers the flexibility needed to adapt to diverse operational requirements.
VT-3
VTOL
A key advantage of the VT-3 is its ability to take off and land in virtually any location, eliminating the need for runways or specialized launch infrastructure. This capability enhances its deployment in remote or rugged terrains, ensuring rapid response and operational efficiency. With its combination of endurance, payload capacity, and adaptability, the VT-3 stands as a premier solution for modern aerial operations, meeting the demands of an ever-evolving landscape.
VT-3
Advanced Connectivity
The VT-3 features a robust multi-channel communication architecture designed for uninterrupted connectivity in any environment. With telemetry ranges exceeding 250 km and live video transmission beyond 220 km, operators maintain precise control and situational awareness across vast distances. The system integrates redundant telemetry channels, Iridium SATCOM, Starlink, and 4G/5G/LTE connectivity for hybrid global operations. Mesh networking and MANET radio repeater capability allow the UAV to act as an airborne communication node, extending signal reach between ground or sea-based units. All data links are encrypted to ensure security and reliability, even in contested electromagnetic environments.
VT-3
Intelligent Autonomy
Powered by onboard artificial intelligence, the VT-3 delivers superior autonomy and threat awareness. A 360° visual detection system continuously scans the surrounding airspace, enabling automatic avoidance of aerial threats and obstacles. AI-driven object recognition supports precision target tracking and real-time decision-making for ISR missions. The UAV’s advanced navigation suite combines RTK GNSS, inertial backup, and map-based visual guidance to maintain flight control even in GPS-denied or jammed conditions. With autonomous mission failover logic and adaptive path correction, the VT-3 ensures operational continuity, mission safety, and intelligence dominance in any environment.
Performance Advantages
220 km
Video Data Link Range
10+ hrs
Endurance
Up to 15 kg
Payload Capacity
100 cc
Hybrid Engine
Specifications
Incorporating advanced technology and enhanced capabilities, it ensures outstanding performance, reliability, and efficiency across various applications.
Payload Capacity
Up to 15 kg
Video Data Link Range
220 km
Endurance
10+ hrs
360 Degree Visual Maneuver Defence
360 Fish Eye AI
Cruising Speed
100 km/h
Range of Speed
80-140 km/h
Operating Altitude
Up to 3700 m
Flight Range
Up to 1300 km
Wingspan
5 m
Length
2.85 m
Dry weight
32 kg
MTOW (Take-Off Weight)
55 kg
Fuel Tank Capacity
11 liters
Launch System
VTOL
Recovery System
VTOL
Power Supply
100cc Hybrid engine, runs on 91 gasoline
VT-3
Engine Module
100 cc Hybrid Engine
4-stroke gas engine, that runs on regular 91 fuel. Consumables are available worldwide and no special fuel required.
Muffler
Specifically designed custom muffler greatly reduces acoustic signature during the flight.
Electric Generator
300 W electric generator to power up all equipment on board and charge batteries during the flight.
Integrated Sensors
See status of the engine during the flight, thanks to the RPM, temperature, air temperature, fuel level and other sensors.
Remote Starter
Start engine from a distance with a push of a button, even during the flight the engine can be automatically restarted by flight controller.
Fuel Tank
Integrated 11 liters carbon fiber fuel tank to support your long-endurance missions. With mil-grade fuel valve for quick fuelling.
VT-3
UAV Features
Navigation Lights
Used to prevent collisions at night or in times of reduced visibility, and are an essential tool in keeping people and UAVs safe.
Automatic Takeoff & Landing
Fully automatically remote take-off and landing without human intervention.
Automatic Flight Along the Route
Plan the mission and execute it perfectly.
ADS-B Transponder
Allows the UAV to determine its position and periodically broadcast it, enabling it to be tracked.
Anti-jamming
A secure encrypted connection and the dual-datalink system ensure that UAV can’t be jammed.
Robust Design
With cutting-edge hybrid propulsion and a rugged airframe, the VT-3 is engineered for superior endurance and performance across diverse mission profiles. Whether for long-range surveillance, precision mapping, or critical reconnaissance operations, the VT-3 delivers exceptional reliability and efficiency. Its VTOL (vertical takeoff and landing) capability enables rapid deployment in confined or remote environments, while its modular design allows easy integration of mission-specific payloads. Built for heavy-lift operations and extended flight durations, the VT-3 represents the next generation of unmanned aerial systems.
